Installationsanleitung DE (566.22 KB)
Installationsanleitung (440.81 KB)

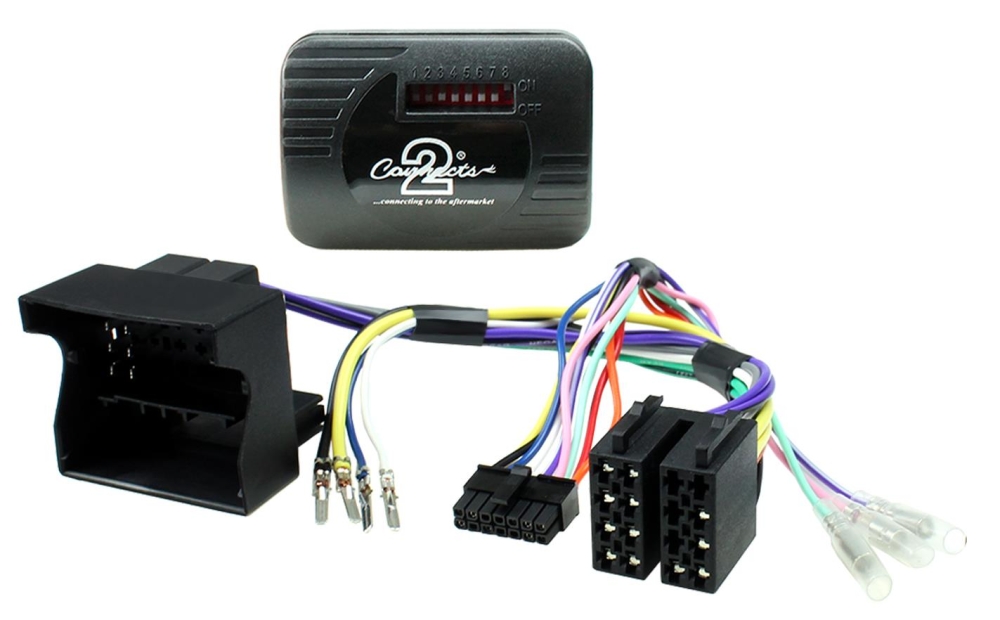

Universal CAN-BUS Adapter
Universeller Quadlock-zu-ISO-Kabelbaumadapter mit CAN-Bus-Zündung, Beleuchtung, Geschwindigkeits impuls ausgang, Handbrems ausgang und Rückwärtsgang ausgang.
Erleichtert den Wechsel der Stereoanlage bei CAN-Bus-Fahrzeugen – kein Suchen mehr nach einer zündungs geschalteten 12-V-Leitung.
Stellen Sie die Dip-Schalter je nach Fahrzeug ein und folgen Sie dem Diagramm, um die Pins für CAN High, CAN Low, +12 V und Masse einzustellen.

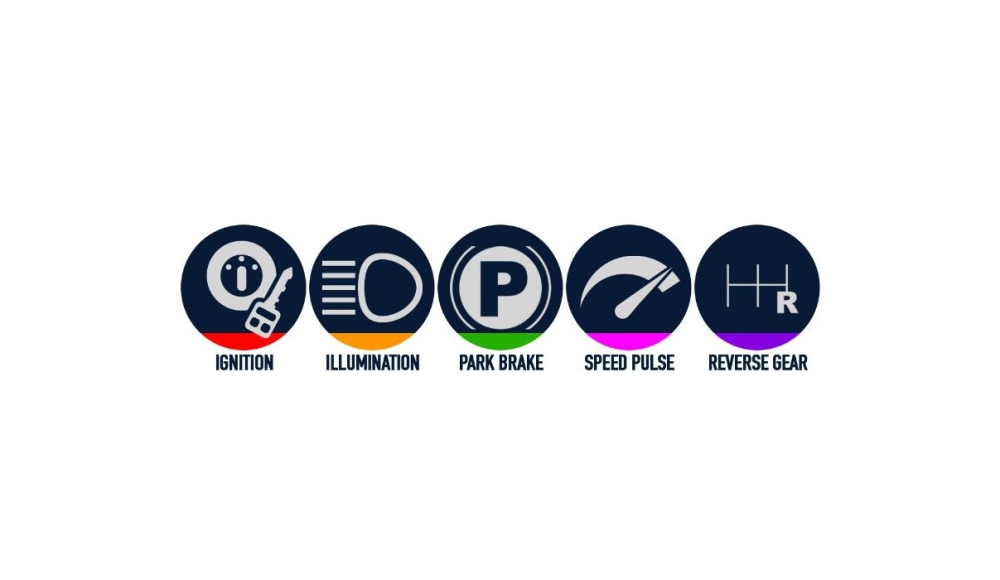

Folgende Signale werden zur Verfügung gestellt:
- Zündung
- Beleuchtung
- Rückwärtsgang
- Speedpulse
- Handbremsausgang
Kompatibilität:
| Make | Model | Variations | Years |
| Audi | A3 | 8P (2003 - 2005) | 2003 - 2012 |
| Audi | A3 | 8P (2005 - 2008) | 2003 - 2012 |
| Audi | A3 | 8P (2008 - 2013) | 2003 - 2012 |
| Audi | A4 | B7/8E/8H (2004 - 2009) | 2005 - 2016 |
| Audi | A4 | B8/8K (2008 - 2011) | 2005 - 2016 |
| Audi | A4 | B8/8K 2nd Gen. (2011 - 2016) | 2005 - 2016 |
| Audi | A5 | 8T/8F (2007 - 2011) | 2007 - 2016 |
| Audi | A5 | 8T/8F (2011 - 2016) | 2007 - 2016 |
| Audi | A6 | C6/4F (2004 - 2009) | 2004 - 2018 |
| Audi | A6 | C6/4F FL (2009 - 2011) | 2004 - 2018 |
| Audi | A6 | C7/4G (2011 - 2015) | 2004 - 2018 |
| Audi | A6 | C7/4G (2015 - 2018) | 2004 - 2018 |
| Audi | A8 | D4/4H (2010 - 2013) | 2010 - 2017 |
| Audi | A8 | D4/4H FL (2014 - 2017) | 2010 - 2017 |
| Audi | Q5 | 8R (2008 - 2013) | 2008 - 2018 |
| Audi | Q5 | 8R Facelift (2013 - 2017) | 2008 - 2018 |
| Audi | Q7 | 4L (2005 - 2009) | 2005 - 2009 |
| Audi | S5 Cabriolet | 8T/8F (2009 - 2011) | 2007 - 2012 |
| Audi | S5 Coupe | 8T (2007 - 2012) | 2007 - 2012 |
| Audi | S5 Sportback | 8T (2010 - 2011) | 2007 - 2012 |
| Audi | TT Coupe | 8J (2006 - 2010) | 2006 - 2014 |
| Audi | TT Coupe | 8J (2010 - 2014) | 2006 - 2014 |
| Audi | TT Roadster | 8J (2006 - 2010) | 2006 - 2014 |
| Audi | TT Roadster | 8J (2010 - 2015) | 2006 - 2014 |
| BMW | 1 Series Hatchback | E81 (3DR) E87 (5DR) (2007 - 2011) | 2004 - 2019 |
| BMW | 1 Series Hatchback | E87 (5DR) (2004 - 2007) | 2004 - 2019 |
| BMW | 1 Series Hatchback | F20 (5DR) F21 (3DR) 2ND LCI (2017 - 2019) | 2004 - 2019 |
| BMW | 1 Series Hatchback | F21 (3DR) F20 (5DR) (2011 - 2015) | 2004 - 2019 |
| BMW | 1 Series Hatchback | F21 (3DR) F20 (5DR) LCI (2015 - 2017) | 2004 - 2019 |
| BMW | 3 Series | E90, E91 (Touring) LCI (2008 - 2012) | 2004 - 2010 |
| BMW | 3 Series | E90, E91(Touring) (2005 - 2008) | 2004 - 2010 |
| BMW | 3 Series Cabriolet | E93 (2006 - 2010) | 2006 - 2010 |
| BMW | 5 Series | F10 (Saloon) F11 (Touring) (2010 - 2013) | 2010 - 2017 |
| BMW | 5 Series | F10 LCI (Saloon) F11 LCI (Touring) (2013 - 2017) | 2010 - 2017 |
| BMW | 5 Series Gran Turismo | F07 (2009 - 2013) | 2010 - 2017 |
| BMW | 5 Series Gran Turismo | F07 LCI (2013 - 2017) | 2010 - 2017 |
| BMW | X1 | E84 (2009 - 2012) | 2010 - 2015 |
| BMW | X1 | E84 FL (2012 - 2015) | 2010 - 2015 |
| BMW | X5 | E70 (2007 - 2010) | 2007 - 2013 |
| BMW | X5 | E70 FL (2010 - 2013) | 2007 - 2013 |
| BMW | X6 | E71 (2008 - 2012) | 2008 - 2014 |
| BMW | X6 | E71 LCI (2012 - 2014) | 2008 - 2014 |
| BMW | X6M | E71 (2009 - 2012) | 2008 - 2014 |
| BMW | X6M | E71 LCI (2012 - 2015) | 2008 - 2014 |
| Citroen | C2 | JM (2003 - 2008) | 2003 - 2009 |
| Citroen | C2 | JM (2008 - 2009) | 2003 - 2009 |
| Citroen | C3 | 1st Gen. FC/FN (2002 - 2005) | 2002 - 2016 |
| Citroen | C3 | 1st Gen. FC/FN FL (2005 - 2010) | 2002 - 2016 |
| Citroen | C3 | SC 2nd Gen. (2009 - 2013) | 2002 - 2016 |
| Citroen | C3 | SC 2nd Gen. FL (2013 - 2017) | 2002 - 2016 |
| Citroen | C4 | LC (2004 - 2008) | 2004 - 2018 |
| Citroen | C4 | LC FL (2008 - 2010) | 2004 - 2018 |
| Citroen | C4 | N (2011 - 2015) | 2004 - 2018 |
| Citroen | C4 | N FL (2015 - 2018) | 2004 - 2018 |
| Citroen | C4 Grand Picasso | 2nd Gen. (2013 - 2016) | 2007 - 2018 |
| Citroen | C4 Grand Picasso | 2nd Gen. FL (2016 > ) | 2007 - 2018 |
| Citroen | C4 Grand Picasso | UA 1st Gen. (2006 - 2010) | 2007 - 2018 |
| Citroen | C4 Grand Picasso | UA 1st Gen. FL (2010 - 2013) | 2007 - 2018 |
| Citroen | C4 Picasso | UD 1st Gen. (2007 - 2010) | 2007 - 2018 |
| Citroen | C4 Picasso | UD 1st.Gen FL (2010 - 2013) | 2007 - 2018 |
| Citroen | C5 | RD (Saloon) TD (Estate) (2008 - 2012) | 2008 - 2017 |
| Citroen | C5 | RD/TD (2012 - 2017) | 2008 - 2017 |
| Citroen | DS3 | 1st Gen A55 (2010 - 2014) | 2010 - 2016 |
| Citroen | DS3 | 1st Gen A55 FL (2014 - 2015) | 2010 - 2016 |
| Ford | C-Max | DM2 FL (2007 - 2010) | 2003 - 2019 |
| Ford | C-Max | DXA (2015 - 2019) | 2003 - 2019 |
| Ford | C-Max | DXA C344 (2010 - 2015) | 2003 - 2019 |
| Ford | Fiesta | JA8 FL MK6 (2013 - 2017) | 2008 - 2017 |
| Ford | Fiesta | JA8 MK6 (2009 - 2013) | 2008 - 2017 |
| Ford | Focus | C307 MK2 (2005 - 2008) | 2005 - 2018 |
| Ford | Focus | C307 MK2 (2008 - 2011) | 2005 - 2018 |
| Ford | Focus | MK3 (2011 - 2015) | 2005 - 2018 |
| Ford | Focus | MK3 (2015 - 2018) | 2005 - 2018 |
| Ford | Kuga | DM2 C394 (2008 - 2012) | 2008 - 2012 |
| Ford | Mondeo | BD,BE,BG CD345 (2007 - 2011) | 2007 - 2014 |
| Ford | Mondeo | BD,BE,BG CD345 FL (2010 - 2015) | 2007 - 2014 |
| Ford | S-Max | WS (2006 - 2010) | 2006 - 2014 |
| Ford | S-Max | WS FL (2010 - 2015) | 2006 - 2014 |
| Ford | Transit | Gen 3. FL V347 V348 (2006 - 2014) | 2006 - 2014 |
| Mercedes-Benz | A Class | W169 (2005 - 2008) | 2005 - 2012 |
| Mercedes-Benz | A Class | W169 (2008 - 2012) | 2005 - 2012 |
| Mercedes-Benz | B Class | W245 (2005 - 2008) | 2005 - 2011 |
| Mercedes-Benz | B Class | W245 FL (2008 - 2011) | 2005 - 2011 |
| Mercedes-Benz | C Class | W203 (Saloon) S203 (Estate) FL (2004 - 2008) | 2007 - 2015 |
| Mercedes-Benz | C Class | W204 (Saloon) S204 (Estate) (2007 - 2011) | 2007 - 2015 |
| Mercedes-Benz | C Class | W204 (Saloon) S204 (Estate) FL (2011 - 2015) | 2007 - 2015 |
| Mercedes-Benz | CLK | A209 (Cabriolet) C209 (Coupe) (2005 - 2009) | 2005 - 2009 |
| Mercedes-Benz | E Class | W211 (Saloon) S211 (Estate) (2002 - 2006) | 2002 - 2008 |
| Mercedes-Benz | E Class | W211 (Saloon) S211 (Estate) FL (2006 - 2009) | 2002 - 2008 |
| Mercedes-Benz | GL Class | X164 (2006 - 2009) | 2006 - 2012 |
| Mercedes-Benz | GL Class | X164 (2009 - 2012) | 2006 - 2012 |
| Mercedes-Benz | M Class | W164 (2005 - 2008) | 2005 - 2015 |
| Mercedes-Benz | M Class | W164 (2008 - 2012) | 2005 - 2015 |
| Mercedes-Benz | M Class | W166 (2012 - 2015) | 2005 - 2015 |
| Mercedes-Benz | R Class | W251 (2006 - 2010) | 2006 - 2017 |
| Mercedes-Benz | R Class | W251 (2010 - 2012) | 2006 - 2017 |
| Mercedes-Benz | S Class | W221 (2006 - 2009) | 2006 - 2013 |
| Mercedes-Benz | S Class | W221 FL (2009 - 2013) | 2006 - 2013 |
| Mercedes-Benz | SL | R231 (2012 - 2016) | 2011 - 2020 |
| Mercedes-Benz | SL | R231 (2016 > ) | 2011 - 2020 |
| Mercedes-Benz | Sprinter | 2005 - 2018 | |
| Mercedes-Benz | Viano | W639 (2004 - 2010) | 2004 - 2014 |
| Mercedes-Benz | Viano | W639 (2010 - 2015) | 2004 - 2014 |
| Mercedes-Benz | Vito | W639 (2003 - 2011) | 2003 - 2014 |
| Mercedes-Benz | Vito | W639 FL (2011 - 2014) | 2003 - 2014 |
| MINI | Hatchback | F56 2nd LCI 3 Door, F55 5 Door (2021 > ) | 2006 - 2021 |
| MINI | Hatchback | F56 3 Door, F55 5 Door (2014 - 2018) | 2006 - 2021 |
| MINI | Hatchback | F56 LCI 3 Door, F55 LCI 5 Door (2019 - 2021) | 2006 - 2021 |
| MINI | Hatchback | R56 (One, Cooper) (2006 - 2016) | 2006 - 2021 |
| Peugeot | 207 | 1st Gen. WA,WC (2006 - 2009) | 2006 - 2009 |
| Peugeot | 207 CC | (2007 - 2009) | 2006 - 2009 |
| Peugeot | 3008 | 1st.Gen (2009 - 2013) | 2009 - 2013 |
| Peugeot | 407 | 1st Gen (2004 - 2008) | 2004 - 2010 |
| Peugeot | 407 | 1st Gen FL (2008 - 2011) | 2004 - 2010 |
| Peugeot | 5008 | T8 (2009 - 2013) | 2010 - 2014 |
| Peugeot | 508 | 1st Gen. (2010 - 2014) | 2014 - 2017 |
| Peugeot | 508 | 1st Gen. FL (2014 - 2018) | 2014 - 2017 |
| SEAT | Alhambra | 7N (2010 - 2015) | 2010 - 2015 |
| SEAT | Altea | 5P1 (2004 - 2009) | 2004 - 2009 |
| SEAT | Cordoba | 6L (2003 - 2004) | 2003 - 2006 |
| SEAT | Ibiza | 6J 6P (2009 - 2012) | 2008 - 2014 |
| SEAT | Ibiza | 6J 6P FL (2012 - 2015) | 2008 - 2014 |
| SEAT | Leon | 1P (2005 - 2009) | 2005 - 2012 |
| SEAT | Leon | 1P FL (2009 - 2013) | 2005 - 2012 |
| Skoda | Octavia | 1Z MK2 (2004 - 2008) | 2009 - 2012 |
| Skoda | Octavia | 1Z MK2 FL (2009 - 2013) | 2009 - 2012 |
| Skoda | Roomster | 5J (2006 - 2010) | 2006 - 2010 |
| Skoda | Superb | 3T MK2 (2008 - 2013) | 2008 - 2013 |
| Skoda | Yeti | 5L (2009 - 2013) | 2009 - 2013 |
| Vauxhall | Antara | A (2007 - 2011) | 2006 - 2010 |
| Vauxhall | Astra | 2004 - 2010 | |
| Vauxhall | Corsa | 2006 - 2014 | |
| Vauxhall | Meriva | 2003 - 2010 | |
| Vauxhall | Signum | 2003 - 2008 | |
| Vauxhall | Tigra | 2004 - 2009 | |
| Vauxhall | Vectra | 2005 - 2008 | |
| Vauxhall | Zafira | 2005 - 2014 | |
| Volkswagen | Eos | 1F (2006 - 2010) | 2006 - 2015 |
| Volkswagen | Eos | 1F FL (2011 - 2016) | 2006 - 2015 |
| Volkswagen | Golf | MK5, A5, Typ.1K (2004 - 2010) | 2004 - 2012 |
| Volkswagen | Golf | MK6, A6, Typ.5K (2008 - 2014) | 2004 - 2012 |
| Volkswagen | Jetta | A5, 1K5 (2005 - 2011) | 2006 - 2018 |
| Volkswagen | Jetta | A6, 5C6, 162, 163 (2011 - 2014) | 2006 - 2018 |
| Volkswagen | Jetta | A6, 5C6, Facelift (2014 - 2017) | 2006 - 2018 |
| Volkswagen | Passat | B6 3C2 (Saloon) 3C5 (Estate) (2005 - 2010) | 2005 - 2015 |
| Volkswagen | Passat | B7 3C (2010 - 2015) | 2005 - 2015 |
| Volkswagen | Passat CC | 3C 1st.Gen (2008 - 2011) | 2008 - 2012 |
| Volkswagen | Polo | MK5 6R (2009 - 2014) | 2004 - 2012 |
| Volkswagen | Scirocco | 137,138 (2008 - 2014) | 2008 - 2014 |
| Volkswagen | Sharan | II 7N (2010 - 2015) | 2010 - 2015 |
| Volkswagen | Tiguan | MK1 5N (2007 - 2011) | 2007 - 2015 |
| Volkswagen | Tiguan | MK1 5N FL (2011 - 2016) | 2007 - 2015 |
| Volkswagen | Touareg | I 7L FL (2007 - 2010) | 2003 - 2009 |
| Volkswagen | Touareg | I 7L (2003 - 2007) | 2003 - 2009 |
| Volkswagen | Touran | MK1 GP (2006 - 2010) | 2003 - 2010 |
| Volkswagen | Touran | MK1 1T (2003 - 2006) | 2003 - 2010 |
| Volkswagen | Touran | MK1 GP (2006 - 2010) | 2006 - 2012 |
| Volkswagen | Touran | MK1 GP2 (2010 - 2015) | 2006 - 2012 |
| Volkswagen | Transporter | T5 7E/F/J/H (2003 - 2010) | 2008 - 2015 |
| Volkswagen | Transporter | T5 7E/F/J/H FL (2010 - 2015) | 2008 - 2015 |
| Hersteller | Connects2 |
| Produkt Gruppe | VW |
Wir bieten Ihnen professionellen Einbauservice von Autoradios, Multimedia, Navigation, Navigationssysteme und Zubehör.
Montage aller Marken auf dem Markt angebotenen
Car Hi-Fi-Radiogeräte, Multimedia-Anlagen,Bluetooth Integration Kit,Rückfahrkamera
Lenkradfernbedienungsadapter, Anschluss Iso Adapter, Freisprechadapter, Multimedia Adapter,
Für Beratung oder Kauf von Endgeräten und Zubehörartikel,
Lassen Sie sich von uns beraten, wir helfen Ihnen gerne weiter.
Multiplanet GmbH
1.Zenec-Store Europas
Im Halt 8
CH-5412 Gebenstorf
Telefon: +41 (0) 56 210 27 67
Wir bieten Ihnen professionellen Einbauservice von Autoradios, Multimedia, Navigation, Navigationssysteme und Zubehör.
Montage aller Marken auf dem Markt angebotenen
Car Hi-Fi-Radiogeräte, Multimedia-Anlagen,Bluetooth Integration Kit,Rückfahrkamera
Lenkradfernbedienungsadapter, Anschluss Iso Adapter, Freisprechadapter, Multimedia Adapter,
Für Beratung oder Kauf von Endgeräten und Zubehörartikel,
Lassen Sie sich von uns beraten, wir helfen Ihnen gerne weiter.
Multiplanet GmbH
1.Zenec-Store Europas
Im Halt 8
CH-5412 Gebenstorf
Telefon: +41 (0) 56 210 27 67
Weitere Produkte aus dieser Kategorie:
Kunden, die dieses Produkt angesehen haben, haben auch angesehen:
2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012
2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015
2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018
2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015
2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014
2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016
2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017
2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017
2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013
2008, 2009, 2010, 2011, 2012, 2013, 2014
2009, 2010, 2011, 2012, 2013, 2014, 2015
2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019
2003, 2004, 2005, 2006, 2007, 2008, 2009
2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012
2004, 2005, 2006, 2007, 2008
2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018
2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016
2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010
2004, 2005, 2006, 2007, 2008, 2009, 2010
2006, 2007, 2008, 2009, 2010
2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013
2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014
2008, 2009, 2010
2008, 2009, 2010, 2011, 2012
1998, 1999, 2000, 2001, 2002, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013
2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009
2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014
2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012
2005, 2006, 2007, 2008, 2009, 2010, 2011
2005, 2006, 2007, 2008, 2009, 2010, 2011
2005, 2006, 2007
2005, 2006, 2007, 2008, 2009
2005, 2006, 2007, 2008, 2009, 2010
2006, 2007, 2008, 2009, 2010, 2011
2006, 2007, 2008, 2009, 2010, 2011
2006, 2007, 2008, 2009
2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010
2003, 2004, 2005, 2006, 2007, 2008
2004, 2005, 2006, 2007, 2008, 2009, 2010
2004, 2005, 2006, 2007, 2008, 2009
2005, 2006, 2007, 2008
2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014
2006, 2007, 2008, 2009, 2010
2006, 2007, 2008, 2009, 2010
2004, 2005, 2006, 2007, 2008
2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015
2009, 2010, 2011, 2012, 2013
2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016
2010, 2011, 2012, 2013, 2014
2002, 2003, 2004, 2005, 2006, 2007, 2008
2005, 2006, 2007, 2008
2008, 2009, 2010, 2011, 2012, 2013, 2014
2010, 2011, 2012, 2013, 2014, 2015
2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013
2006, 2007, 2008, 2009, 2010
2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015
2009, 2010, 2011, 2012, 2013, 2014, 2015
2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012
2005, 2006, 2007, 2008, 2009, 2010
2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014
2006, 2007, 2008, 2009, 2010, 2011
2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016
2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017
2009, 2010, 2011, 2012, 2013, 2014
Weitere Produkte aus dieser Kategorie:
Kunden, die dieses Produkt angesehen haben, haben auch angesehen:
6 von 7 Produkte in dieser Kategorie
